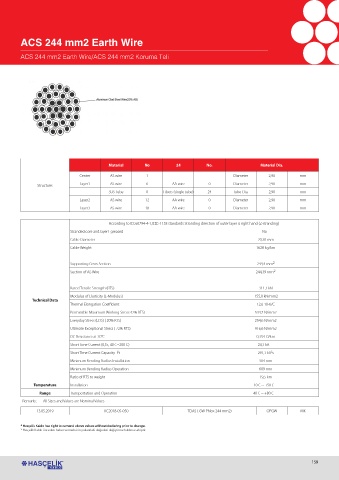

ACS 244 mm2 Earth Wire

ACS 244 mm2 Earth Wire/ACS 244 mm2 Koruma Teli

Material No 24 No. Material Dia.
Center AS wire 1 Diameter 2,90 mm
Structure: Layer1 AS wire 6 AA wire 0 Diameter 2,90 mm
SUS Tube 0 Fibers (single tube) 24 Tube-Dia. 2,90 mm
Layer2 AS wire 12 AA wire 0 Diameter 2,90 mm
Layer3 AS wire 18 AA wire 0 Diameter 2,90 mm

According to IEC60794-4-1,IEEE-1138 standards Stranding direction of outer layer is right hand (Z-stranding)
Stranded:core and layer1 greased No
Cable Diameter 20,30 mm
Cable Weight 1628 kg/km

Supporting Cross Section 244,4 mm 2
Section of AS Wire 244,39 mm 2

Rated Tensile Strength (RTS) 311,1 kN
Modulus of Elasticity (E-Modulus) 155,0 kN/mm2
Technical Data
Thermal Elongation Coefficient 12,6 10-6/C
Permissible Maximum Working Stress 42% RTS) 534,7 N/mm2
Everyday Stress (EDS) ( 20% RTS) 254,6 N/mm2
Ultimate Exceptional Stress ( 72% RTS) 916,6 N/mm2
DC Resistance at 20°C 0,354 Ω/km
Short Time Current (0,5s, 40 C~200 C) 24,1 kA
Short Time Current Capacity I²t 291,1 kA²s
Minimum Bending Radius Installation 304 mm
Minimum Bending Radius Operation 609 mm
Ratio of RTS to weight 19,5 km
Temperature Installation -10 C ~ +50 C
Range Transportation and Operation -40 C ~ +80 C
Remarks: All Sizes and Values are Nominal Values

13.05.2019 HC2018-05-050 TEIAS ( GW Phlox 244 mm2) OPGW MK

* Hasçelik Kablo has right to camend above values without declaring prior to change.
* Hasçelik Kablo önceden haber vermeksizin yukarıdaki değerleri değiştirme hakkına sahiptir.
